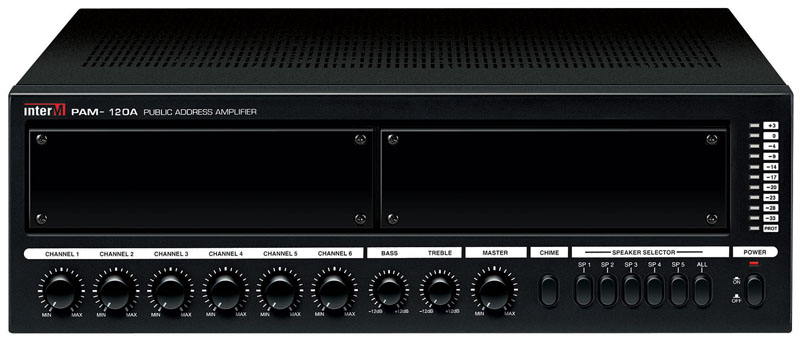

inter-M PAM-120 A Power Amfi

Teknik Özellikler

Rated Output Power: PAM-120A(THD 1%) : 120W (RMS)

Frequency Response

Amp In: 80Hz~20kHz

Link In: 80Hz~15kHz

CH1~CH6: 120Hz~8kHz

Remote In: 120Hz~8kHz(PAM-340A, PAM-480A)

T.H.D.(at 1kHz Rated Output): Less than 1%(PAM-120A)

T.H.D.(at 1kHz Half Power Output): Less than 0.5%(PAM-340A, PAM-480A)

Amp In: Better than 90dB(PAM-120A)

Link In: Better than 65dB

CH1~CH6: Better than 50dB

Input Sensitivity/Impedance

CH1~CH6

TRIM VR -60dB Position: 1mV/10kΩ

TRIM VR -16dB Position: 158mV/10kΩ

Link In: 100mV/10kΩ

Amp In: 1V/47kΩ(PAM-120A)

Speaker Output/Impedance: PAM-120A : 120W/4Ω, 70V/42Ω, 100V/83Ω

Preamp Output/Impedance: 1V/600Ω

Tone Control (100Hz, 10kHz): ±12dB

CH1~CH6 EQ Control (100Hz, 1kHz, 10kHz): ±12dB

Power Source: 100–120VAC or 220V–240VAC; 50/60Hz, 24V DC(only PAM-120A)

Power Consumption: PAM-120A : 135W(1/8 POWER), 200W(1/3 POWER), 300W(FULL POWER)

Weight: PAM-120A : 13kg/28.7lb

Dimensions: 420(W) x 132(H) x 360(D)mm/16.5(W) x 5.2(H) x 14.2(D)in

Operation Temperature: 14F~104F (-10°C~+40°C)

inter-M Pam -120 A Power Amfi
